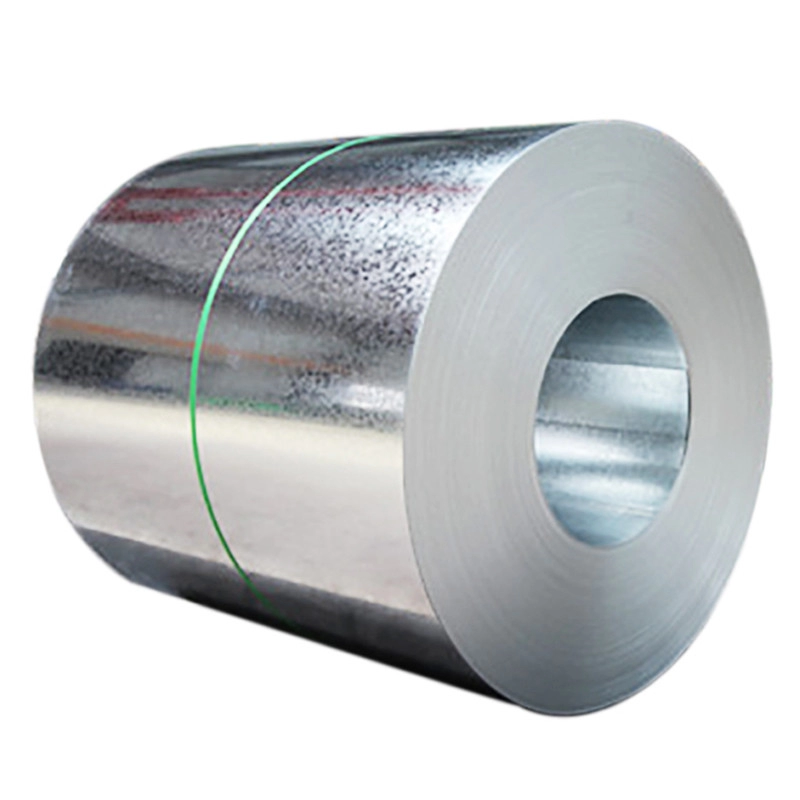

0.33mm Thickness Galvanized Steel Coil For Corrugated Tiles Regular Spangles

Place of Origin ：	China Mainland
Brand Name ：	SUNRISE
Model Number ：	0.33X914
Minimum Order Quantity ：	20 Tons
Price ：	USD per Ton
Packaging Details ：	Craft Paper + Plastic Film + Steel Cover + Steel Belt , Fixed By Steel Rope Plus Wood Frame
Delivery Time ：	15-25 days
Payment Terms ：	L/C, T/T
Supply Ability ：	10000 Tons per Month

Detail Information

Grade:	SGCC, Commercial Quality	Thickness:	0.33mm TCT
Zinc Coated:	40g	Spangles:	Regular
Width:	914 Mm	Tolerance On Thickness:	+/- 0.02mm
Tolerance On Width:	+/-3mm
High Light:	rolled galvanized sheet metal , galvanized steel roll

Product Description

Galvanized Steel Sheet Coils Used For Corrugated Steel Tiles

Specification:

Standard	JIS G 3302
Grade	DX51D+Z,SGCC,SGCD,
Grade	SGCH,SGC340,SGC400,Q195,Q235.
Width	914mm
Thickness	0.33MM
Zinc Coating	50g/square meter
Coil ID	508/610 mm
Coil Weight	3-5 Tons / coil , 7-10 Tons / Coil
Type of Coating	Hot dipped galvanized
Surface Structure	zero spangle/minimized spangle/ regular spangle/big spangle
Surface Treatment	chromed/skinpass/oiled/slightly oiled/dry/anti-fingerprint

0.33mm Thickness Galvanized Steel Coil For Corrugated Tiles Regular Spangles 0

Refer to below for Spangles

0.33mm Thickness Galvanized Steel Coil For Corrugated Tiles Regular Spangles 1
