4.5mm Thickness Highway Guardrail Systems Parts Galvanized Round Guardrail Posts

Place of Origin ：	CHINA
Brand Name ：	SUNRISE
Model Number ：	HG
Minimum Order Quantity ：	25MT
Packaging Details ：	Standard Seaworthy Packing
Delivery Time ：	30-35days
Supply Ability ：	80000MT per Year

Detail Information

Raw Material:	Hot Rolled Steel	Surface Treatment:	Galvanized
Zinc Coating:	80-85um(550-600g/㎡)	Thickness:	4.5mm
Material Grade:	Q235	Usage:	Traffic Safety
High Light:	steel highway guardrail , galvanized guard rail

Product Description

4.5mm Thickness Highway Guardrail Systems Parts Galvanized Round Guardrail Posts

Description:

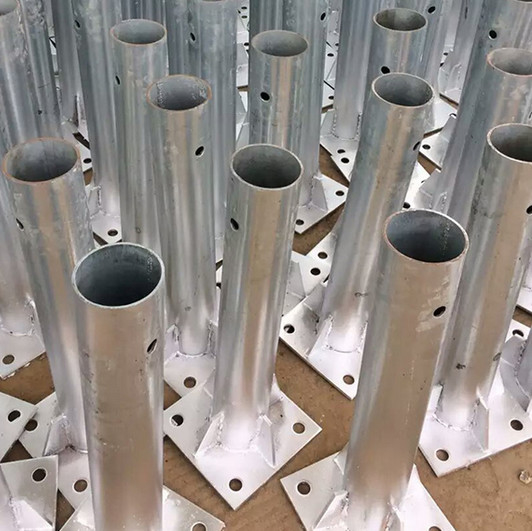

Guardrail post, as a holder of highway guardrails, generally determines the barrier's performance during collisions. The guardrail posts we supply are well designed and made of high quality steel, such as Q235, Q345 and Q255 or depend on your needs. Additionally, it features a long service life due to its anti-rust and corrosion resistant characters, which proceed from its superior zinc coating or PVC coating as shown in the picture:

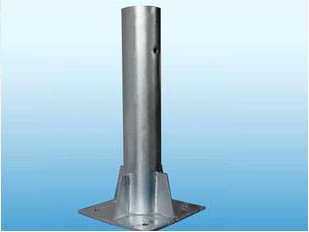

4.5mm Thickness Highway Guardrail Systems Parts Galvanized Round Guardrail Posts 0

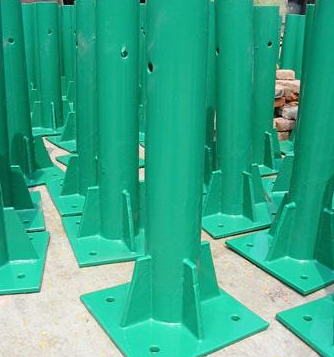

Galvanized Round Guardrail Post Powder Coating Round Guardrail Posts

Specification:

Model		Parameters
Profile		Round, square, C-section, H-section, U-section
Base metal		Steel grade Q235 (equivalent to S235JR / ASTM A283M / DIN EN10025)
Certificate		GB/T19001-2000—ISO9001:2000, CE.
Thickness		4.5 mm, 6 mm, or client’s requirements
Length		1500, 1800, 1950, custom sizes are also available.
Parameters (mm)	Round post	ø114 / ø140 × 4.5 × length Flange plate: 300 × 300 × 10 mm, 250 ×250 × 8 mm		Or custom sizes
	Square post	130 × 130 ×6 mm × length
	C-section post	C 150 × 75 × 25 × 4.5 mm × length,
	H-section post	H 150 × 100 × (tw) 4.5 × (tf) 6 mm × length
	U-section post	U 150 × 75 × 5 mm × length, U 178 × 76 × 6 mm × length
Surface treatment		Hot-dip galvanizing or plastic coating
Weight of coating (GB/T 281-2007)		Average check limit triple-spot test	Min check limit triple-spot test
		600 g/m2 (85 um)	425 g/m2 (61 um)

Features:

Post is an important part to support corrugated sheet steel beam, which acts as a cushion.
Simple structure, cheap and practical, easy to transport and install.
Modest cost, suitable for using in large area
Strong environmental adaptability, no topographic restriction.
Anti-corrosion, anti-aging, anti-drying, resistant to high and low temperature, long service life.

Applications:

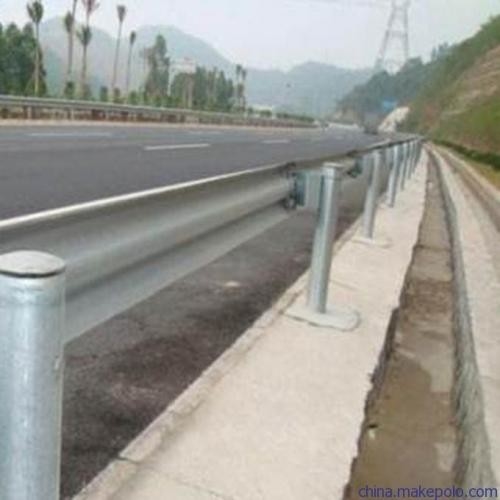

Posts are mainly used in highway, large parking lots, scenic spots, rural roads and other safety engineering construction.

4.5mm Thickness Highway Guardrail Systems Parts Galvanized Round Guardrail Posts 2

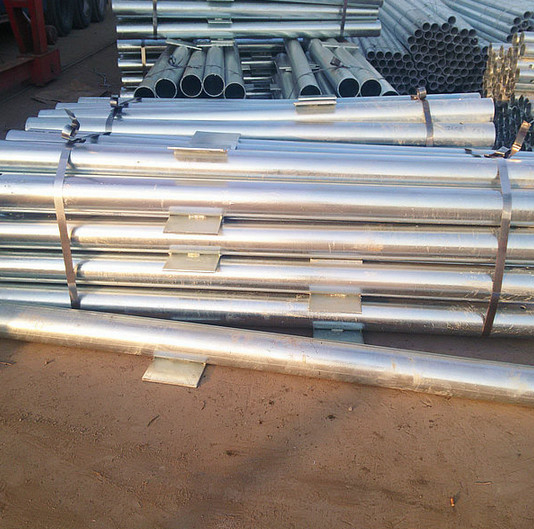

Packaging:

4.5mm Thickness Highway Guardrail Systems Parts Galvanized Round Guardrail Posts 3

Our commitment to customer service begins with centralized scheduling, complete inventories, significant manufacturing capability and flexibility to efficiently respond to the industry's needs.

We offer a full range of products to meet most highway barrier requirements, including W-beam, box beam, Thrie-beam, cable barrier and bridge rail. From complete roadside barrier systems to individual custom fabricated parts, Trinity is capable and ready to supply the parts you need.
