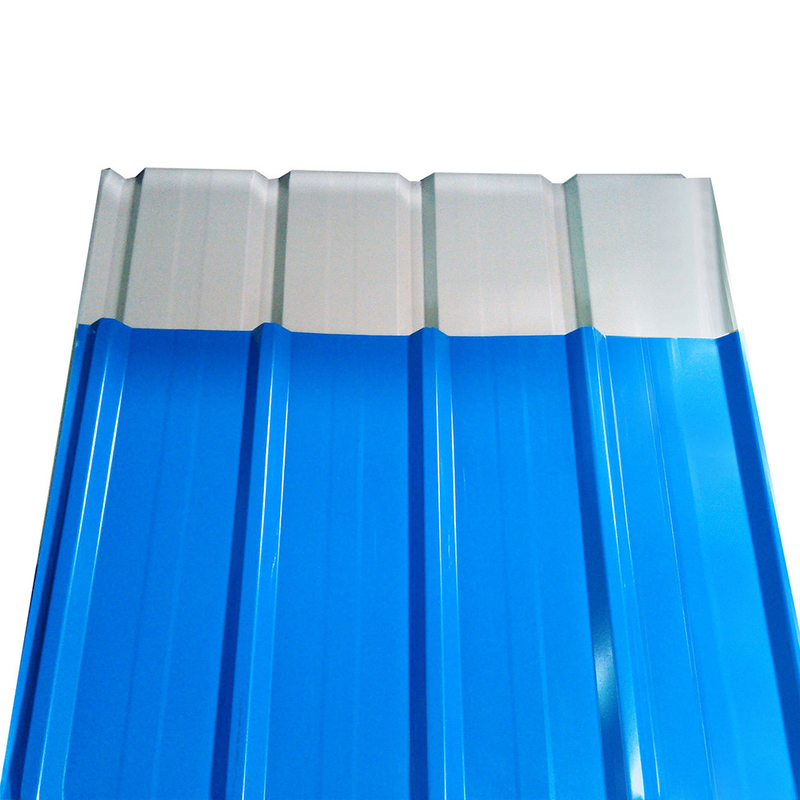

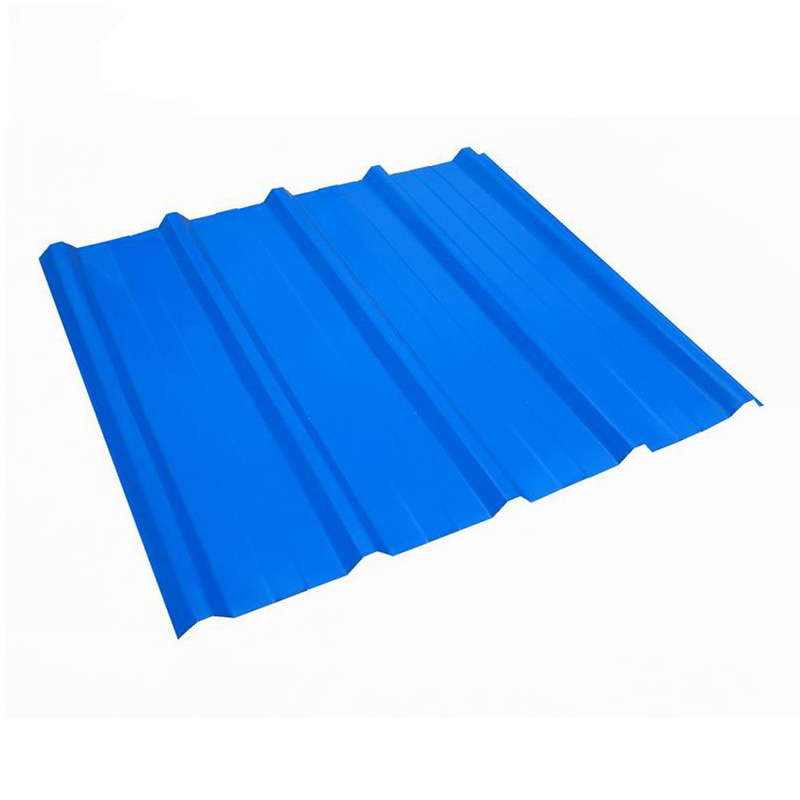

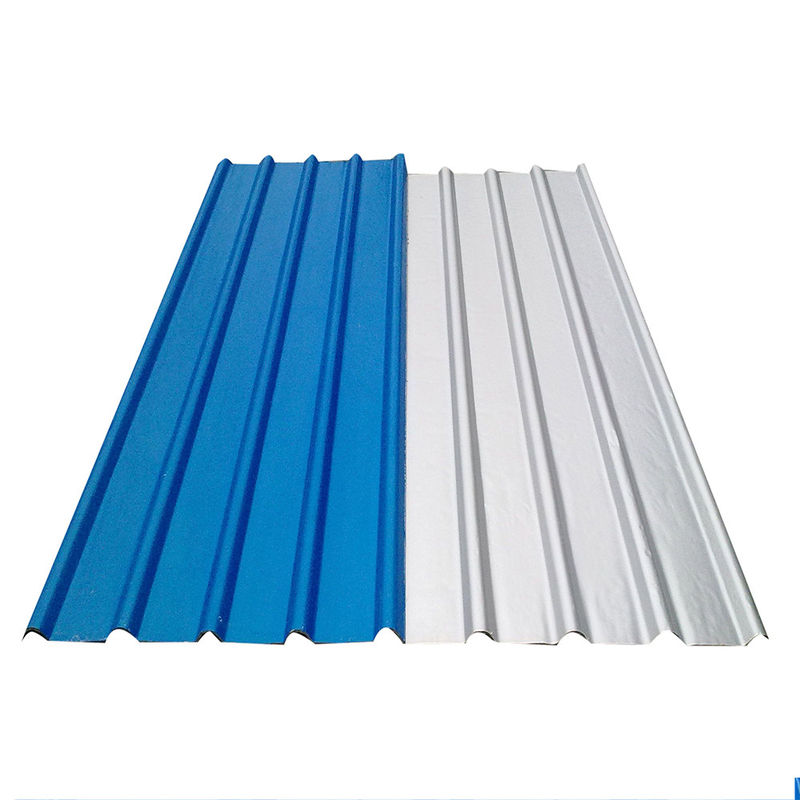

YX25-210-840 Pre-painted Galvanized Steel Roofing Sheet for Residential Building Roof
Product Description
A metal roof is a roofing system made from metal pieces or tiles characterized by its high resistance, impermeability and longevity. It is a component of the building envelope. Zinc, copper and steel alloy are commonly used.
Residential metal roofing is available in numerous colors, styles, materials and finishes. From thedistinctive look of standing seam to
the classic appearance of asphalt, tile or cedar, there’s a metal roofthat’s right for any home.
| MODEL | YX25-210-840(1050) |
| Effective Coverage Width(mm) | 840/1050 |
| Expansion Width(mm) | 1000/1200 |
| Steel Thickness (mm) | 0.5 | 0.6 |
| Section Moment of Inertia(cm4/m) | 4.44 | 5.38 |
| Section Resistance Moment(cm3/m) | 6.98 | 8.31 |
Product Parameter
| Material | Ppgi coil |
| Steel grade | DX51D, Q195, Q195L, SGCC |
| Thickness | 0.35mm |
| Effect Width | 840mm |
| Feeding width | 1000mm and 1200mm |
| Length | customed, not excedding 11.8m |
| Zinc coating | 30-180g/m2 |
| Colors | All RAL colors are available |
| Lacquer | top side 15 micro Back side 5-10 micro |
| Surface treatment | Color Coated |
| Coating structure | Top+ Prime/Back, PE/EPOXY; 20- 25 microns/5-7 microns |
| Lifespan | 10-15 years, very strong corrosion resistance it wouldn't fade |
| Tolerance | Thickness: +/-0.02 mm, width: +/-2mm; Total quantity: +/-5%; Zinc coating: +/-5% |
| Tensile Strength | >300mpa |
| Yield Strength | 370-380mpa |
Other Sizes:
yx10-130-910
yx12-110-880
yx14-63.5-850
yx15-225-900
yx18-76-836/1064
yx20-215-860/1075
yx25-205-1025
yx25-210-840
yx35-125-750
yx51-240-720
yx54-410-820
yx75-200-600
yx76-344-688
yx76-380-760
Packing & Loading
-Waterproof paper as cover -Loading based on lever rule
-Steel strip fix the bundle -Protect the bundle & easy to take out
Application
For houses, factories, warehouses, all kinds of building roof and wall.
