SGCC Galvanized Steel 0.12-2.0mmThickness Steel Roof Sheet Colored Metal Tile Roof Shingles
Product Specification
| Commodity | Corrugated roofing sheets |
| base steel | Galvanized steel | Galvalume steel | Prepainted steel PPGI | Prepainted steel
PPGL |
| Thickness(mm) | 0.13-1.5 | 0.13-0.8 | 0.13-0.8 | 0.13-0.8 |
| Width(mm) | 750-1250 | 750-1250 | 750-1250 | 750-1250 |
| Surface treatment | Zinc | Aluzinc coated | RAL color coated | RAL color
coated |
| Standard | ISO,JIS,ASTM,AS,EN |
| Grade | SGCC, SGHC ,DX51D ; SGLCC,SGLHC; CGCC,CGLCC |
| Width(mm) | 610-1250mm (after corrugated),
Raw material width 762mm to 665mm(after corrugated)
Raw material width 914mm to 800mm(after corrugated)
Raw material width 1000mm to 900mm(after corrugated)
Raw material width 1200mm to 1000mm(after corrugated) |
| Color coating (Um) | Top:5-25m Back:5-20m or as client's requirement |
| Paint Color | RAL code No. or customer' color sample |
| Surface treatment | Chromed passivation, anti-finger print,skinpassed. Ral color.
every piece surface can be painted logo as customer requirement |
| Pallet weight | 2-5MT or as client's requirement |
| Quality | Softy , half hard and hard quality |
| Supply Ability | 30000MT/month |
| Price Item | FOB, CFR, CIF |
| Payment terms | T/T, L/C at sight |
| Delivery time | 15-35days after confirmed order |
| Packaging | Export standard, seaworthy |
Main Features
1)Rich color:Beautiful shape, rich color, strong decorative, flexible combination, can express different architectural styles;
2)Light weight:Light weight (6-10 kg/m_) high strength (yield strength 250-550 MPa), good skin stiffness, good anti-seismic performance of waterproofing agent.
3) Safe and convenient:Construction and installation is convenient, reducing installation and transportation workload, and shortening construction period.
4)Environmental protection:Recyclable and popularized application of profiled steel sheet to meet the sustainable development policy of the national economy.

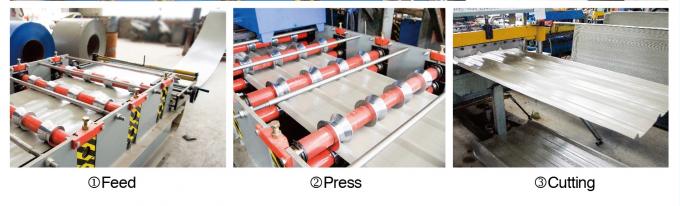

Production Flew:
FEED--PRESS--CUTTING
Advantage of steel sheet
(1)-Easy installation
(2)-Nice appearance
(3)-Low in costs
(4)-Durable
(5)-High strength
(6)-Anti oxidation

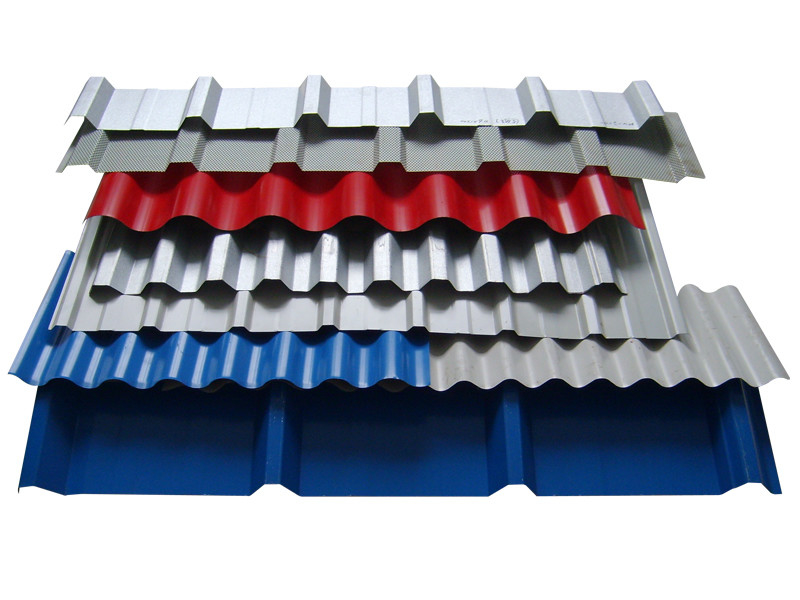

Raw material of steel sheet
(1)-Hot dipped galvanized steel sheet/coil
(2)-Pre painted galvanized steel sheet/coil
(3)-Galvalume steel sheet
(4)-Pre painted galvalume steel sheet
(5)-Other metal sheet like aluminum sheet; copper shet
Specification of steel sheet
(1)Thickness-Normal 0.2mm-0.6mm
(2) Rib height-25mm
(3) Wave span-205mm
(4) Wave no.-5
(5) Effective Width-1025mm
(6) Length-No longer than 11800mm (for transportation purpose)
Usage of steel sheet
(1)-Roof
(2)-Wall
(3)-Ceiling
(4)-Fence

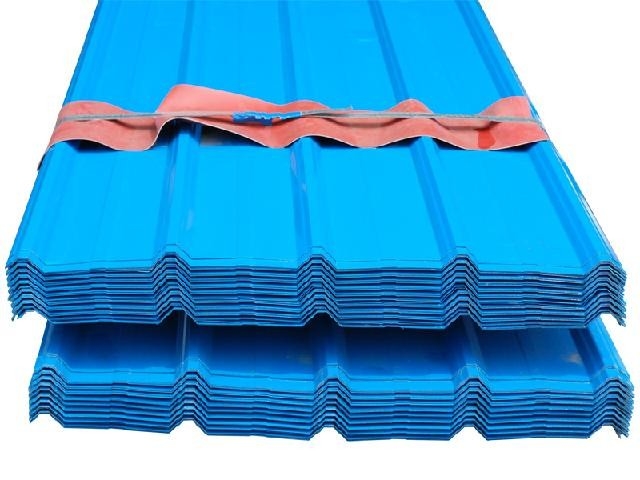

Packing of steel sheet
(1) Package quantity -About 200pcs /package
(2) Package materials-Brown paper
(3) Enlace -2-4 steel strips
Loading of steel sheet
(1)20GP size-5.85M (L)*2.23M (W)*2.258M (H)
(2) 40GP size-11.8M (L)*2.23M (W)*2.258M (H)
(3) Chose 1-Max length ≤ 5800mm; we use 20GP
(4) Chose 2-Max length ≥5800mm; we use 40GP
(5) Introduction of 20ft container:
| 20’CONTAINER SPECIFICATION |
| Interior Dimension | Door Opening: | Tare Weight | Payload | Cubic Capacity | Average Loadability |
| L: 5,898mm | W: 2,340mm |
2,200kg
|
24,800kg
| 33.0 cbm | 28.0 cbm |
| W: 2,350mm | H: 2,280mm |
| H: 2,393mm |
|

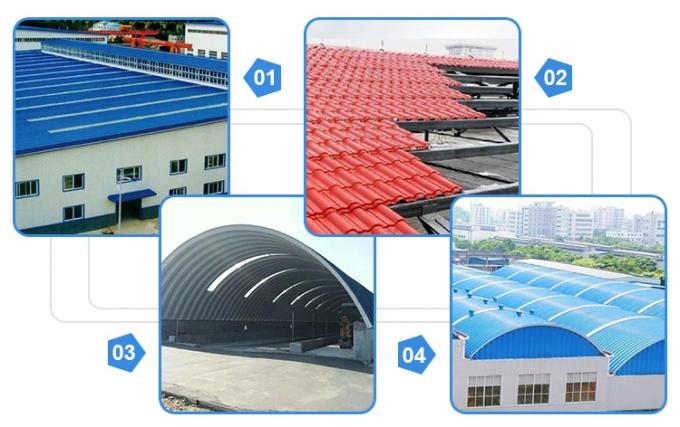

Applications of steel sheet
Gymnasium; warehouse; hospital; shelter; supermarket; Commercial facilities; industrial facilities

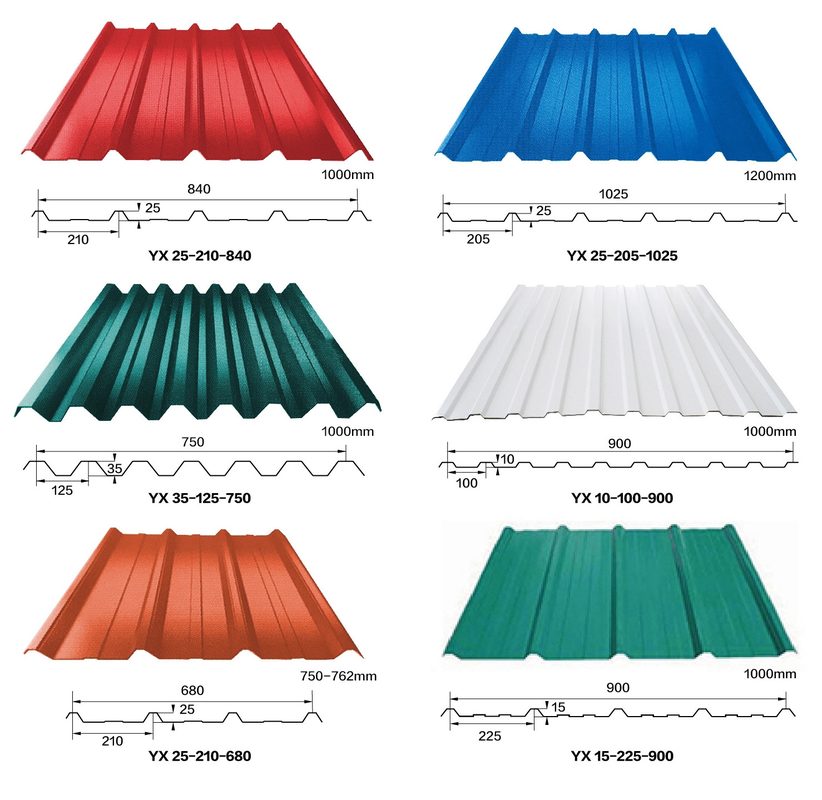

Available models of roof tiles press steel
| YX8-130-910 | YX10-112.5-900 | YX10-110-880 | YX14-65-850 |
| YX15-140-840 | YX16-225-900 | YX16-80-850 | YX18-63.5-825 |
| YX25-210-840(SHEET) | YX25-210-840(TILE) | YX25-215-860 | YX25-85-765 |
| YX26-205-820 | YX26-205-1025 | YX28-150-750 | YX28-150-900 |
| YX28-280-840 | YX32-130-780 | YX35-125-750 | HV51-380-760 |
| HV51-410-820 | HV66-394-788 | YX130-300-600 | As your design |
Standard and certificate of steel sheet
(1) standard-GB/T 12755-2008; ASTM; JIS
(2) certificate-ISO9001-2000
