High Content Epoxy Polyester Powder Coatings Materials
This is a style of powder coating with high contents, which means the quality is in the high level,
Would stand for corrosion for more years.
Confine of application:
• Could be sprayed on surface of Aluminium, steel products as a coat of anti-corrosion.
• For Example, Aluminium Window Frames, Balcony, Door Frames.
Surface texture

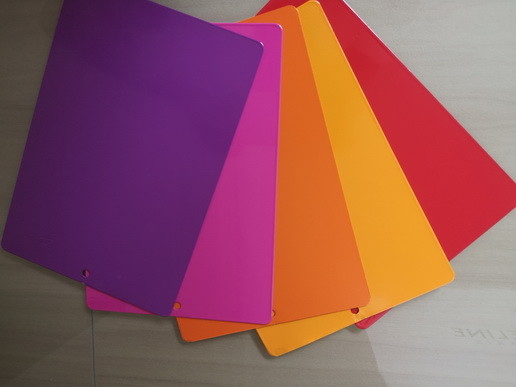

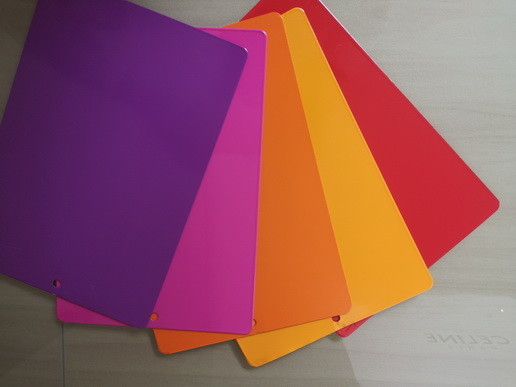

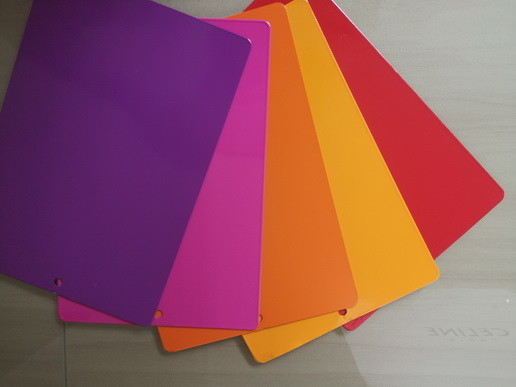

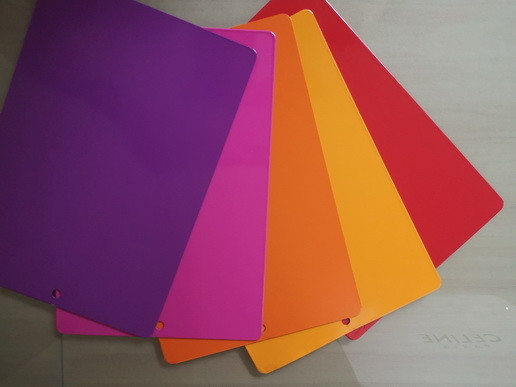

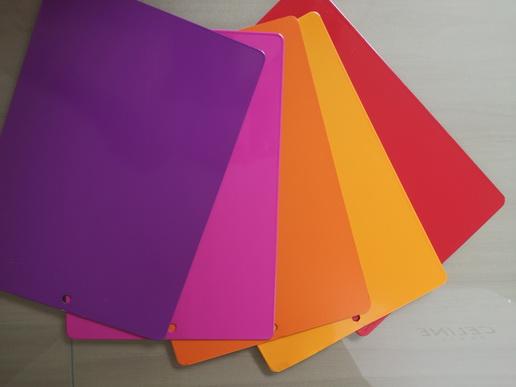

• We can offer powder coatings which can work out different colors, and half/high gloss surface textures.
| Energy saving and low temperature solidification powder coatings |
|
| Physical properties | Gravity | 1.5,up to color and gloss |
|
|
| Grit size | 100% smaller than 100μm, special requirement should be informed |
|
| Mobility | 120-140 |
|
|
|
| Properties of Coating layer | Item | criteria | result |
|
| Gloss 60° |
| GB/T9754-88 | 1° to 96°+ |
|
| Impact test | ISO6272 | GB/T1723-1993 | 51cm/kg |
|
| Cupping test | ISO1520 | GB/T9753-1988 | 9mm |
|
| Adhesion | ISO2409 | GB/T 9286-1998 | Grade 0 |
|
| Bending test | ISO1519 | GB/T 6742-1986 | 2mm |
|
| Pencil hardness | ASTMD3363 | GB/T 6739-1996 | 1H-2H |
|
| Salt-fog test | ISO7253 | GB/T 1771-1991 | ＞500h |
|
| Anti-humidity | ISO6270 | GB/T 1740-1979 | ＞1000h |
|
| Heat resistance | 110℃/24h(white) | Excellent gloss retention,△E≤0.3-0.5 |
|
| Attention: |
|
| 1. Above parameters are gained from oil-free, rust removal cold rolling steel board of thickness of 0.8mm, under experimental circumstances, with coating layer thickness of 70μm; |
|
| 2. The property data may drop down a little upon gloss reduction. |
|
|
|
| Application conditions: | Consolidation conditions | Standard | 180℃(work piece temperature) 15-20min |
|
| Pre-treating | Low temperature 160℃(work piece temperature) 15min |
|
| Fast 200℃(work piece temperature) 3min |
|
|
|
| Pre-treating methods differs from different substrates (phosphating process, sand blasting, shot treatment) |
|
| Spraying | Corona electrostatic spraying ; frictional electrostatic spraying ; for other special spraying method (user must propose requirement ahead) |
|
| Theoretical | 9-10m2/kg, coating layer thickness 55-60um, up to types and colors |
|
| coverage |
|
| Application confine | Indoor |
|
|
|
|
|
|
|
|
Pictures

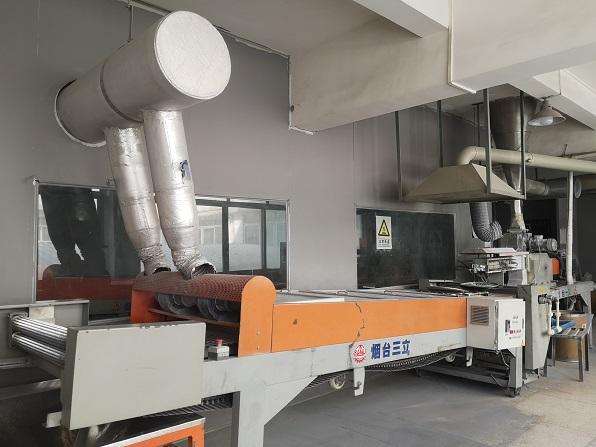

Production Line:
1. Sample can be offered at free charge if quanity is not too much.
2. We have stocks at sometimes for some special sizes,and can deliver within short time.Many styles for your choices.
3. OEM and ODM order are accepted, Any kind of logo printing or design are available.
4. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you
5. All of our products are produced by our professional workmen and we have our high-work-effect foreign trade team, you can totally believe our service.
6. We have 15 years experience of design, manufacture and sell steel, we cherish every order from our honor.
7. Competitive price and quality from our own factory
8. Approved by ISO9001, CE, SGS every year
