Energy Saving Color Powder Coatings Low Temperature Solidification

Place of Origin ：	Guangzhou, China
Brand Name ：	Yinda
Certification ：	ISO 9001-2008, UV AND SALT TEST REPORT
Model Number ：	Energy saving and low temperature
Minimum Order Quantity ：	200 kgs
Price ：	USD 3.0-3.5 per Kg FOB
Packaging Details ：	22kg in PE bag, one Bag In a Craft Carton
Delivery Time ：	3 days
Payment Terms ：	L/C At Sight, Or 30% Deposit, Balanced Before Shipment
Supply Ability ：	450 Tons Monthly

Detail Information

Raw Materials:	Polyester Resin	Solidification Condition 1:	At 160 ℃ In 15 Minutes
Solidification Condition 2:	At 190 ℃ In 3 Minutes	Energy Saving:	By 32%
Production Efficiency Promotion:	By 52%	Surface Texture:	Different Colors, And Half / High Gloss Surface Textures.
High Light:	multi color powder coating , color tech powder coating

Product Description

Energy saving and low temperature solidification powder coatings

Environment protection is widely advocated in the world advancing. Powder coatings will substitute solvent type of coatings. Common powder coatings solidify at above 190 ℃,consuming energy and fuels. We offer low temperature and energy saving powder coatings which can solidify at lower temperature, saving energy and fuels, and meet the requirement of environmental protection.

In 2011 we developed low temperature solidification powder coatings which can solidify at 160 ℃ in 15 minutes, or at 190 ℃ in 3 minutes, saving energy by 30% and promote production efficiency by 50%. Feedback from users proves that all the mechanical and physical properties can meet the requirements of normal temperature solidification products

Confine of application:

• Be applicable to all high gloss or half gloss products which usually use common temperature solidification powder coatings;

Surface texture

• We can offer powder coatings which can work out different colors, and half/high gloss surface textures.

Energy saving and low temperature solidification powder coatings
Physical properties	Gravity	1.4-1.7,up to color and gloss

	Grit size	100% smaller than 100μm, special requirement should be informed
	Mobility	120-140

Properties of Coating layer	Item	criteria			result
	Gloss 60°		GB/T9754-88		1° to 95°+
	Impact test	ISO6272	GB/T1723-1993		50cm/kg
	Cupping test	ISO1520	GB/T9753-1988		8mm
	Adhesion	ISO2409	GB/T 9286-1998		Grade 0
	Bending test	ISO1519	GB/T 6742-1986		2mm
	Pencil hardness	ASTMD3363	GB/T 6739-1996		1H-2H
	Salt-fog test	ISO7253	GB/T 1771-1991		＞500h
	Anti-humidity	ISO6270	GB/T 1740-1979		＞1000h
	Heat resistance	110℃/24h(white)			Excellent gloss retention,△E≤0.3-0.5
	Attention:
	1. Above parameters are gained from oil-free, rust removal cold rolling steel board of thickness of 0.8mm, under experimental circumstances, with coating layer thickness of 70μm;
	2. The property data may drop down a little upon gloss reduction.

Application conditions:	Consolidation conditions	Standard		180℃(work piece temperature) 15-20min
	Pre-treating	Low temperature 160℃(work piece temperature) 15min
		Fast 200℃(work piece temperature) 3min

		Pre-treating methods differs from different substrates (phosphating process, sand blasting, shot treatment)

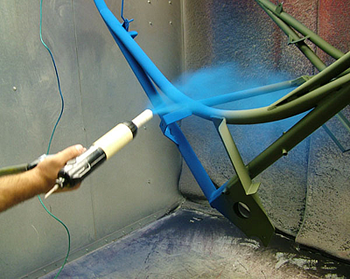

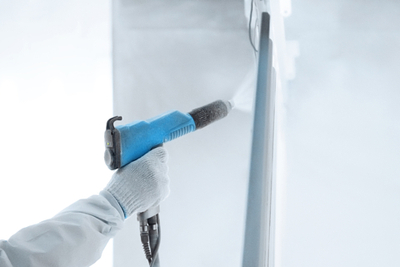

	Spraying	Corona electrostatic spraying ; frictional electrostatic spraying ; for other special spraying method (user must propose requirement ahead)
	Theoretical	8-10m²/kg, coating layer thickness 60um, up to types and colors
	coverage
	Application confine	Indoor
