Epoxy Polyester Powder Coating , For Construction Aluminum Profile
This product is synthesized by saturated polyesters, with thermosetting properties and abundant color choices, excellent mechanical properties, gloss retention, color retention, leveling and anti ultraviolet rays. Our powder coatings can form a good protection layer on surfaces of aluminum profile and galvanized steel profile which is widely processed for walls, window frames, doors, balcony fences, rails. We can develop designated color, gloss and texture for our customers.
Advantages:
• no limit of color choices, RAL color, pearly luster, metallic selective;
• different kinds of glosses and textures selective, such as matt, common gloss, high gloss, ripple, hammer tone, and wrinkle texture, etc;
• we can offer heat transfer printing coatings;
• environment protectively (without heavy metals, no volatile, TGIC-free is selective);
• easy application, be facilitated to increase production efficiency.
Our aluminum profile designated powder coatings are of super color retention ability, can be used in hostile environment, with anti-cracking, anti-fading, color and gloss retention ability.
| Detailed information: |
|
| Series | Series No. | Lifespan | Color retention | Criteria | Warranty |
|
| (years) | (years) |
|
| Special color | Outdoor A | 10 | 7-10 | GB5237,AAMA-2603 | 7-10 |
|
| Special texture | Outdoor B | 10 | 7-10 | GB5237,AAMA-2603 | 7-10 |
|
| Super anti weathering | Outdoor C | 10 | 10 | Gb5237-4-04, Qualicoat | 10 |
|
| fluorocarbon | Outdoor D | 12 | 12 | AAMA-2603,Qualicoat | 12 |
|
| Outdoor E | 15 | 15 | AAMA-2604,Qualicoat | 15 |
|
| Outdoor F | 20 | 20 | AAMA-2605,Qualicoat | 20 |
|
| Aluminum profile Powder Coatings |
|
|
| Physical properties | Gravity | 1.0-1.8,up to color and gloss |
|
|
|
|
| Grit size | 100% 30-60μm, special requirement should be informed |
|
|
| Mobility | 120-140 |
|
|
| Properties of Coating layer | Item | criteria | result |
|
|
| Gloss 60° |
| GB/T9754-88 | 1° to 95°+ |
|
|
| Impact test | ISO6272 | GB/T1723-1993 | 50cm/kg |
|
|
| Cupping test | ISO1520 | GB/T9753-1988 | 5mm |
|
|
| Adhesion | ISO2409 | GB/T 9286-1998 | Grade 0 |
|
|
| Bending test | ISO1519 | GB/T 6742-1986 | 2mm |
|
|
| Pencil hardness | ASTMD3363 | GB/T 6739-1996 | 2H |
|
|
| Salt-fog test | ISO7253 | GB/T 1771-1991 | ＞500h |
|
|
| Anti-humidity | ISO6270 | GB/T 1740-1979 | ＞1000h |
|
|
| QUV color | YS/T680-2008 | Color change: class A |
|
|
| difference 1000h | Gloss loss: class A |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Application conditions: | Consolidation | Standard | 200℃(work piece temperature) 10min |
| conditions | consolidation |
| Pre-treating | Pre-treating methods differs from different substrates( phosphating process, sand blasting, shot treatment) |
| Spraying | Corona electrostatic spraying ; frictional electrostatic spraying ; static |
| electricity spraying fluidized bed (user must propose requirement); Fluidized bed hot – dip coating (user must propose requirement ); for other spraying method (user must propose requirement ahead) |
| Theoretical | 8-10m2/kg, coating layer thickness60um, up to types and colors |
| coverage |
| Application confine | Outdoor and some for indoor |
|
| other | Packaging and transportation | 20Kg/Carton, with polyethylene bag, Non-dangerous articles, transportation friendly. Avoiding straight sunlight, humidity, heat, and contact with |
| chemical substances; |
| Storing | Stored indoors at 40℃, ventilated, dry, clean warehouse, avoiding fire |
| source, heat radiators, straight sunlight, opening to the air. Warranty period: 6 months. To be used after checking if expired. Unfinished bags should be |
| sealed after opening. |
| Hygiene and | Container or bags should be sealed after working. Keep away from fire source. Avoiding intake of powder. Catering and smoking are forbidden in relevant warehouse. Labor should wear anti-static shoes, keep grounding. |
| security |
| Attentions: We do not recommend use of bright color series such as yellow, orange, red, or metallic color series. For details, please contact us. In order to protect metal parts, pre-treating must be done in good quality before coating. For details, please contact supplier of pre-treating chemicals. |

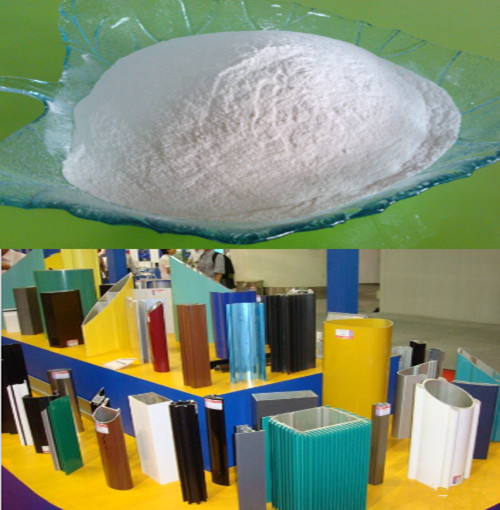

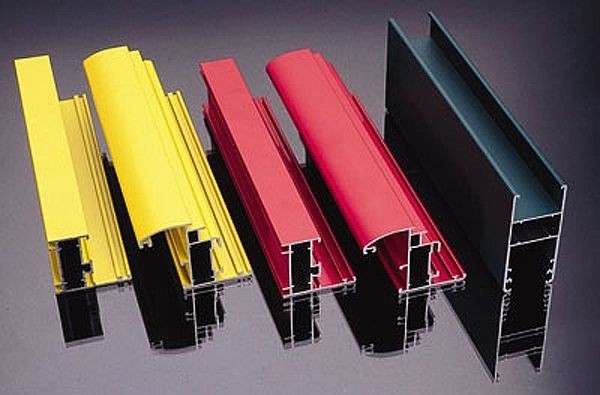

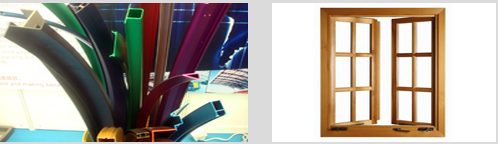

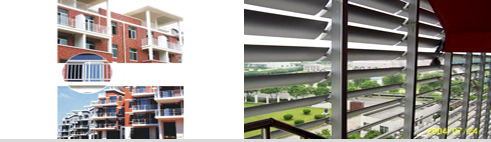

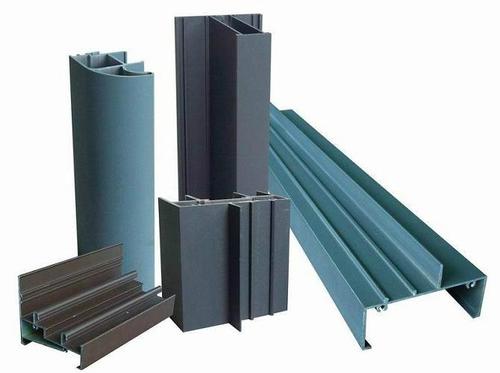

Application Pictures
