1.6mm Diameter Electro Galvanized Steel Wire for Armouring Cable
Galvanized wire specifications:
1.Category:Hot dipped galvanized iron wire and Electro galvanized iron wire .
2.Material :low carbon steel.
4.Use :Widely used in communication equipment,medical equipment,weaved mesh,brush,tightwire,filter slice,high pressure pipe,architecture,artcraft and so on.

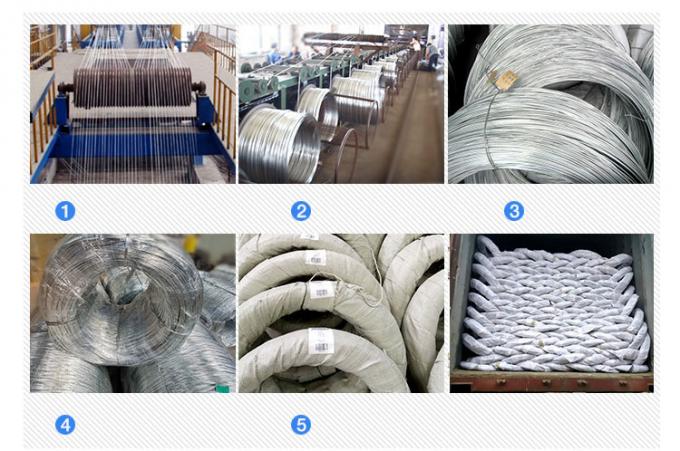

5.Processing: Wire drawing, acid washing, and rust removing, annealing and coiling
6.Normal weight:Generally in 25kgs/roll,50kgs/roll,100kgs/roll,also can be .
Hot dip galvanizing wire is dipped in liquid zinc heating melting, fast production, coating thickness but not uniform, the minimum thickness of the market allowed is 45 micron, highest can amount to 300 micron. The darker color, the consumption of zinc metal, infiltration layer is formed with the base metal, good corrosion resistance, hot dip galvanized outdoor environment can keep decades.
Eletro galvanized wire is made of zinc plated metal appearance gradually through the current one-way in the plating tank, production speed is slow, uniform coating, thickness thin,usually only 3-15 micron, bright appearance, poor corrosion resistance, in general a few monthswill rust.
Product Details:
Material: low carbon steel wire(Q195,Q235)
Wire diameter: 0.3-5.0mm
Wire Gauge:6-25#, other gauges can be customized.
Surface Treatment: electro, hot dipped galvanized, PVC coated
Zinc coated rate: Electro galvanized iron wire: 8-12g/mm2; Hot dipped galvanized iron wire: 40-240g/mm2
Tensile strength: 35-70kg/mm2
Elongation: 10%-25%
wire gauge size | SWG(mm) | BWG(mm) | metric(mm) |
8 | 4.06 | 4.19 | 4.00 |
9 | 3.66 | 3.76 | - |
10 | 3.25 | 3.40 | 3.50 |
11 | 2.95 | 3.05 | 3.00 |
12 | 2.64 | 2.77 | 2.80 |
13 | 2.34 | 2.41 | 2.50 |
14 | 2.03 | 2.11 | - |
15 | 1.83 | 1.83 | 1.80 |
16 | 1.63 | 1.65 | 1.65 |
17 | 1.42 | 1.47 | 1.40 |
18 | 1.22 | 1.25 | 1.20 |
19 | 1.02 | 1.07 | 1.00 |
20 | 0.91 | 0.89 | 0.90 |
21 | 0.81 | 0.813 | 0.80 |
22 | 0.71 | 0.711 | 0.70 |
Applications:
1. Electro fence wire also called binding wire,GI Wire,Mesh wire.Electro galvanized iron wire. As it name,it's usually for construction binding. and weaving wire mesh etc.
2. Hot dipped fence wire also called hot dipped galvanized iron wire,hot dipped galvanized steel wire. high zinc coated wire.fence wire. It's uaually used as weaving chain link fence, gabion box, welded wire mesh, field fence,and other fence,also used for construction binding ,and other applications.

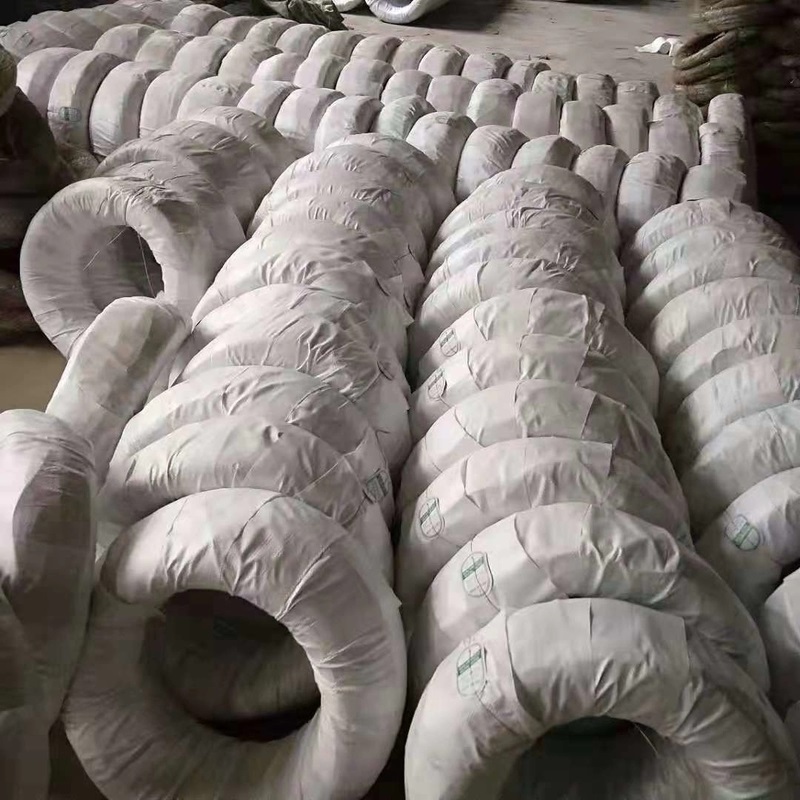

Galvanized coil wire packing :
Plastic film inside and weaving bag outside

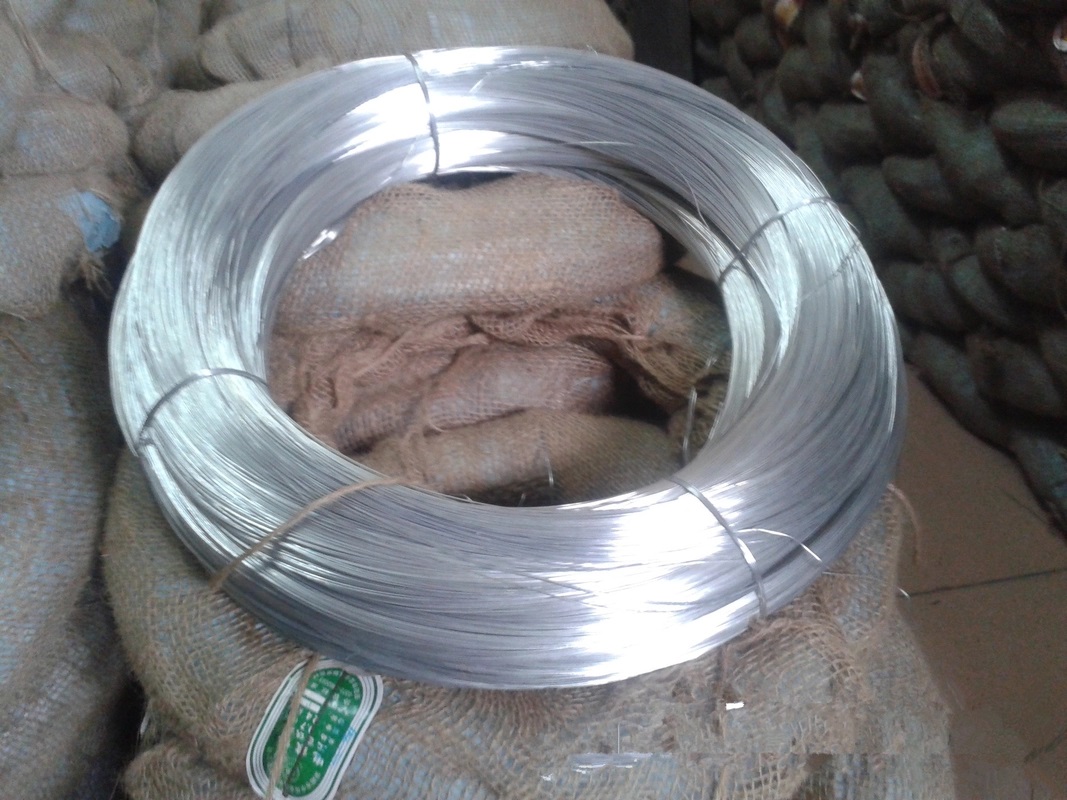

Plastic film inside and hessian cloth outside
Or as you requirements
