0.20x914mm 55% ALU GL Steel Coil For Construction

Place of Origin ：	China Mainland
Brand Name ：	SUNRISE
Certification ：	SNI
Model Number ：	0.20X914
Minimum Order Quantity ：	50 Tons
Price ：	According to Latest Market Price and Exact Specification

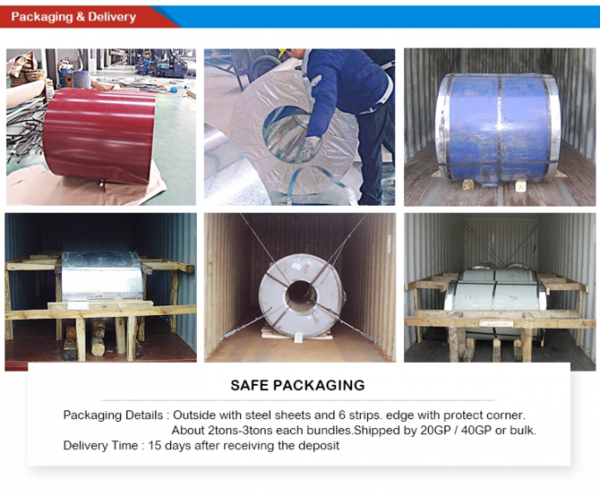

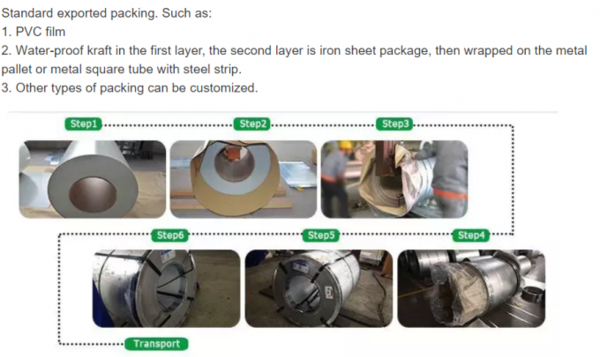

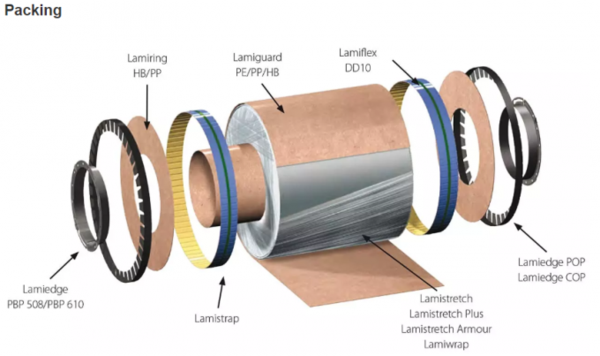

Packaging Details ：	3 layers of packing, inside is craft paper, water plastic film is in the middle and outside GI steel sheet to be covered by steel strips with lock, with inner coil sleeve
Delivery Time ：	25 days
Payment Terms ：	L/C, T/T
Supply Ability ：	10,000 Tons Monthly

Detail Information

Standard:	JIS G3312 、 EN10142 、 ASTM A653M	Grade:	G550 ， G300
Technique:	Cold Rolled, Alu-zinc Coated	Type:	Steel Coil
Application:	Corrugated Roof	Surface Treatment:	Anti-Finger Print / Chromated
Coil Weight:	3 To 8 Tons	AZ Coating:	40 Grams/m2
Thickness:	0.2mm	Width:	914mm
Thickness Tolerance:	+/-0.015MM	Width Tolerance:	-0/+3mm
High Light:	55% ALU GL Steel Coil , 0.20x914mm GL Steel Coil , JIS G3312 Galvalume Steel Coil

Product Description

0.20x914 55% ALU GL Steel Coil Used for Construction

Product Description:

Main steel grades: DX51D+Z,DX52D+Z,DX53D+Z,DX54D+Z,S220GD+Z,

S250GD+Z,S280GD+Z,S320GD+Z,SGCC,SGHC,

SGCD1,SGCD2,SGCD3,SGC 340,SGC 400.

Steel standard: EN 10142,EN 10147,EN 10292,JIS G3302,ASTM A653/A653M,Q/BQB 420

Main application:Widely used for construction,household appliance,automobile,light industry,etc.

Rolling range: Thickness*Width*Length 0.12-2.0mm*50-1500mm*as per request

Surface Treatment: passivation/fat liquoring/stop-off lacquer/parkerising/no processing

Galvanized type:Hot Dipped Galvanizing/Electro galvanized

Certificate:ISO/SGS/IBR/ROHS/BV and so on

AZ Coating:20-180g/m2 (both sides)

Production Process:

Pay off reel → double cut shear → welder-notcher → entry accumulator → pre cleaning section → furnace → hot bridle → zinc pot → air knife → after cooler → water quench → dryer → skin pass mill → dryer → tension leveler → dryer → chemical coater → chemical oven → cooler → exit accumulator → oiler → exit shear → tension reel

AZ Content:

JISG3302 Z12 Z18 Z22 Z25 Z27 Z35 Z43 Z50 Z60

Zinc(g/m2) 120 180 220 250 270 350 430 500 600

ASTMA525 A40 A60 G60 G90 G115 G140 G165 G185 G210

Zinc(g/m2) 122 183 183 275 351 427 503 564 640

DIN1716 100 200 275 350 450 600

Zinc(g/m2) 100 200 275 350 450 600

Application:Building/corrugated sheet/Roofing/electrical/appliances
