Prepainted Steel With 55% Aluminum 45% Zinc Coated For Cladding
Specifications
Color coated steel sheet generally refers to the product made by prepainted the surface
of paint(by roller) or bond organic thin film and baking, which can be made into final products
by deep processing. It has been called “prepainted steel plate” or “plastic steel plate” abroad.
Since the product is provided with beautiful color or pattern after it is produced, it also been
called “color coated steel sheet”. The name of “color coated steel sheet” is more popular in
China, which is called “color coated sheet” or “color sheet” for short.

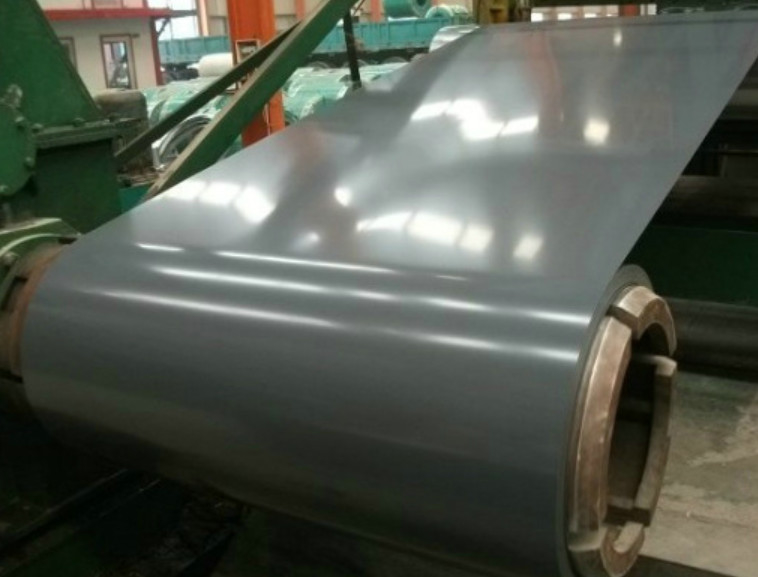

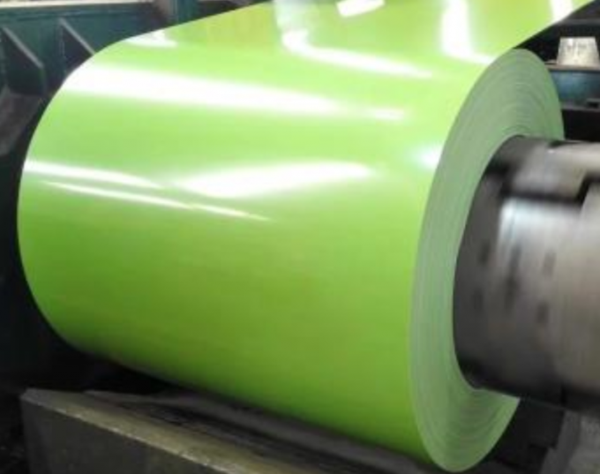

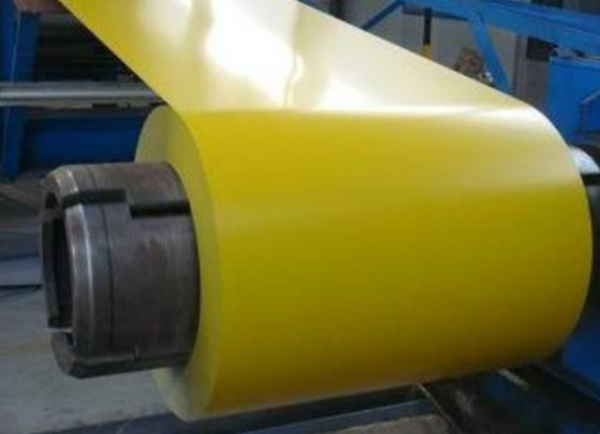

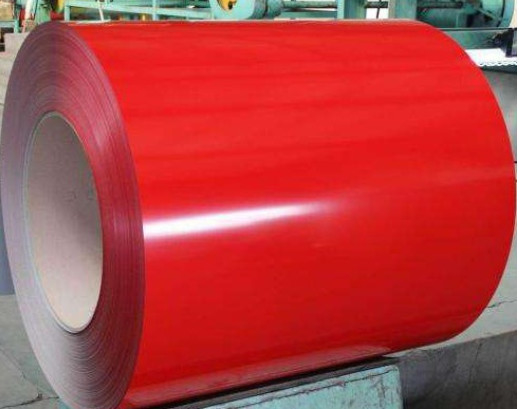

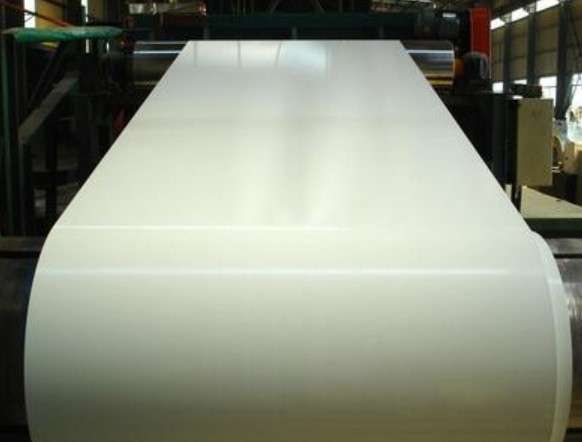

Prepainted Steel Coil is available in thicknesses ranging from 0.12 mm to 2.00 mm and in
widths up to 1300 mm. Prepainted Steel Coil is also available in slit widths and sheets.
| Product Name | PPGI prepainted galvanized steel strip coil in hot sale |
| Grade Group | DX51D, DX52D, DX53D, DX54D |
| Standard | AISI, ASTM, BS, DIN, GB, JIS |
| Material | ASTM/AISI/SGCC/CGCC/TDC51DZM/TDC52DTS350GD/TS550GD/DX51D+Z Q195-q345 |
| Grade | Full hard/CS-A, B, C/FS-A/B/DQ/ SS-33, 37, 40, 50 and 80 Grades as per ASTM/EN/JIS/SASO |
| Thickness(mm) | 0.12-2.0 |
| Width | 600-1250mm |
| Coil ID | 508/610mm |
| Painted Material | PE SMP HDP PVDF |
| Color | Choose From Ral Code or by Client's Requested |
| Coil Weight | 1-8tons |
| Shape | Coil, strip, flat,sheet, plate, etc |
| Application | Building materials, steel structure, home construction, roofing sheets, etc. |
| Surface Treatment | Galvanized coated |
| Package | Standard sea worthy packing |
| Port | Any port in China |
| Delivery | 15-25 working days |
| MOQ | 50tons |
Coating Performance
1. PE: Good adhesion, durability, chemical resistance, service life is 7-10 years.
2. SMP: Excellent hardness, heat resistance. It has the good durability and powder resistance,
glossy resistance, service life is 10-12 years.
3. HDP: Better UV resistance, high durability, the mainly performance between PE and PVDF
coating, service life is 10-15 years.
4. PVDF: best formability and color retention, excellent outdoor durability, dust resistance,
solvent resistance, service life: 20-25 years.
