Wrinkle Matt Color Coated Steel Coils
Description:
Our wrinkle Matt Color Coated Steel Coils with 55%alu, which provides higher anti-corrosion
property and a longer lifespan than the one with base metal of galvanized steel sheets. The
base metals for prepainted steel sheet consist of cold-rolled, hot-dip Alu-zinc coated. The
finish coats of prepainted steel sheets can be classfied into groups as follows: polysters,
silicion modified polyesters, high-durability polyester, ect.
| Thickness | 0.13mm - 0.8mm |
| Width | 600mm - 1250mm |
| Standard | JIS G3312-CGCC, CGC340-570, (G550) |
| ASTM A755M CS-B, SS255-SS550 |
| Zinc (Alu-Zinc) Coating | 30-275g/m2 |
| Paint | Factory Paint, Akzo, Nippon and so on |
| Color | RAL code (High Glossy, Metallic, Mat, Printed Flower, Printed Wooden, Printed Brick, etc.) |
| Paint Coating | Top: 13~25 mic; Back: 5~10 mic |
| T-BEND | 3T / 4T |
| IMPACT | 9J / 6J |
| HARDNESS | G300 ~ G550 |
| Coil Weight | 3.0 ~ 5.5 Mt |
| Coil ID | 508mm |
| Delivery time | within 15 - 20 days |
| Payment terms | L/C at sight or T/T |

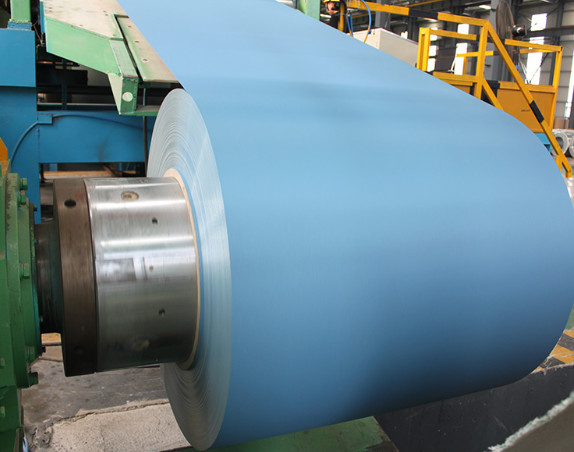

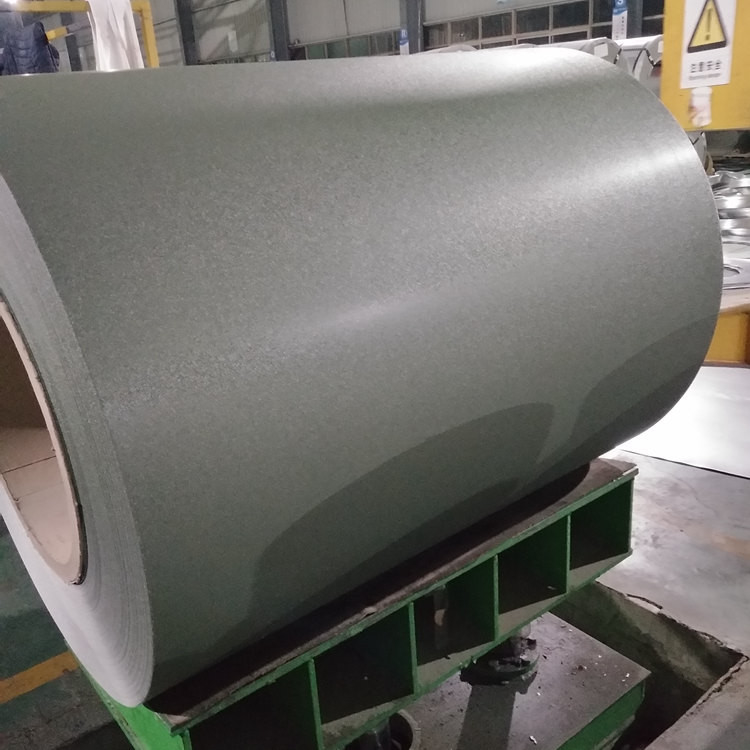

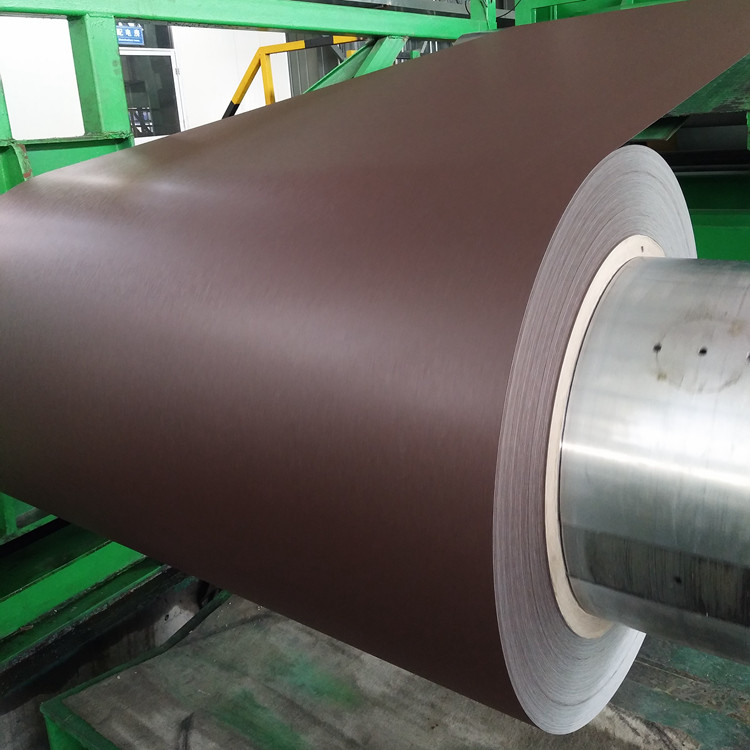

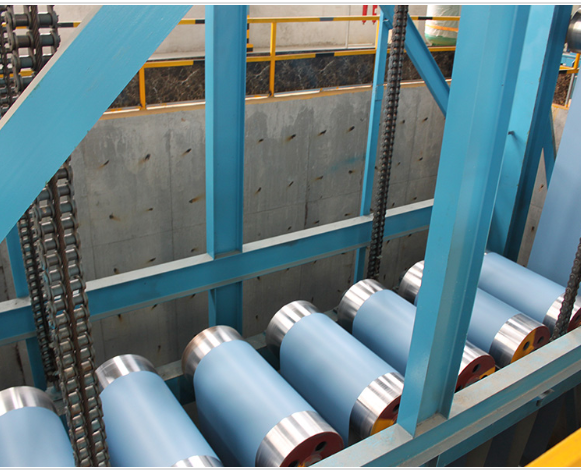

Production Pictures:
Coils Package in Container:
It is Eye to Sky for Wrinkle PPGL.
