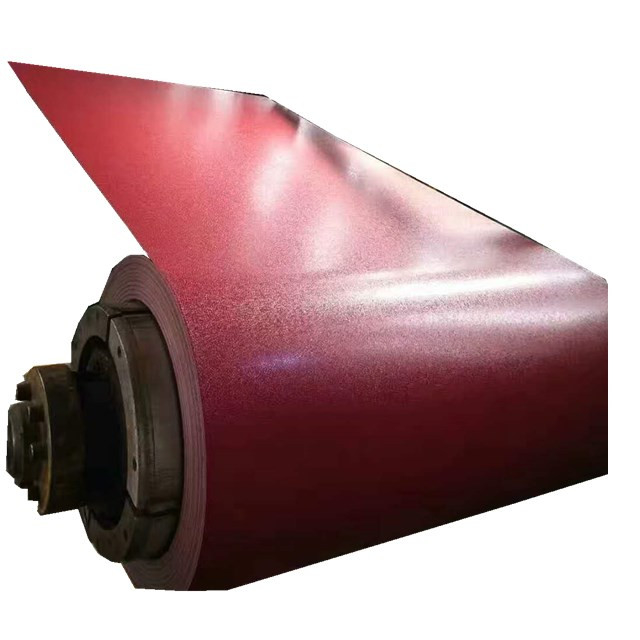

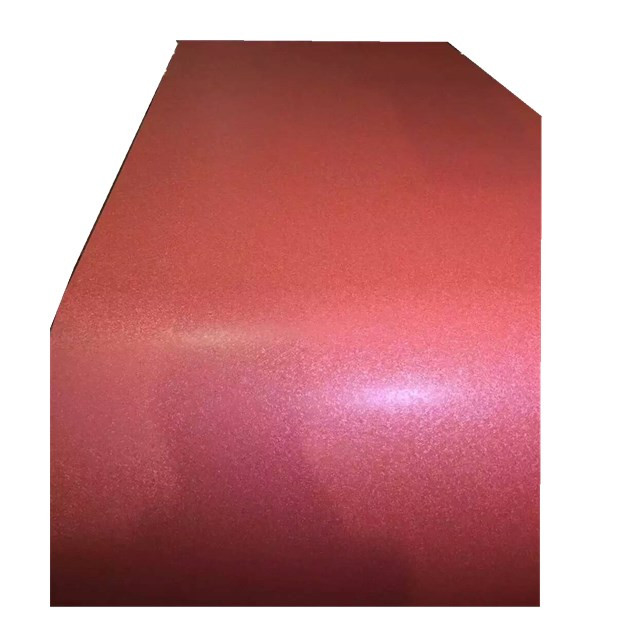

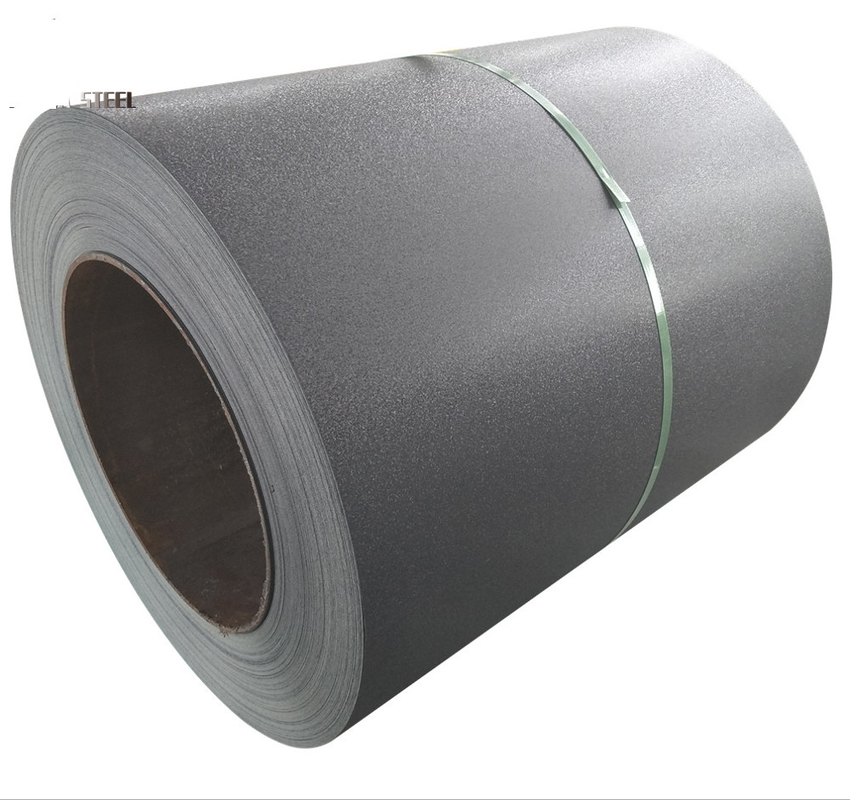

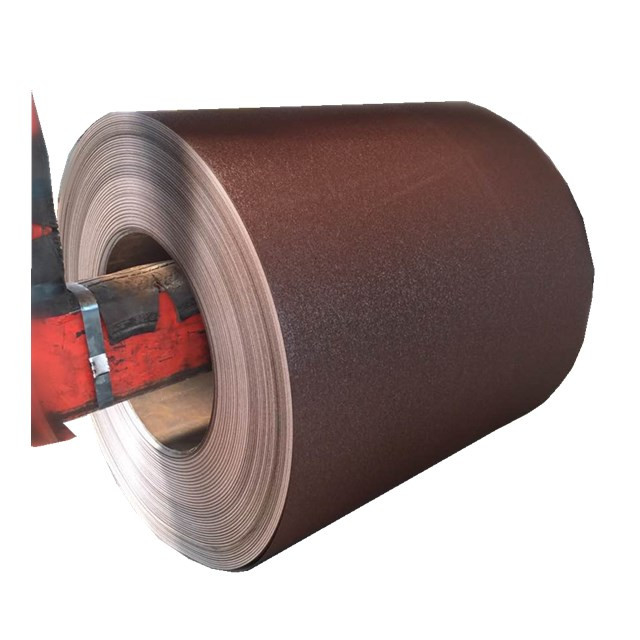

Matte PPGI Prepainted Hot dipped Zinc Coating Steel Coils
With 5% Aluminium, which provides higher anti-corrosion property
and a longer lifespan than that of galvanized steel sheets. The base
metals for prepainted steel sheet consist of cold-rolled, HDG galvanized
coated. The finish coats of prepainted steel sheets can be classfied into
groups as follows: polysters, silicion modified polyesters, high-durability
polyester, ect.
| Thickness | 0.13mm - 0.8mm |
| Width | 600mm - 1250mm |
| Standard | JIS G3312-CGCC, CGC340-570, (G550) ASTM A755M CS-B, SS255-SS550 |
| Zinc (Alu-Zinc) Coating | 30-275g/m2 |
| Paint | Factory Paint, Akzo Nobel, Nippon and so on |
| Color | RAL code (High Glossy, Metallic, Mat, Printed Flower, Printed Wooden, Printed Brick, etc.) |
| Paint Coating | Top: 13~25 mic; Back: 5~10 mic |
| T-BEND | 3T / 4T |
| IMPACT | 9J / 6J |
| HARDNESS | G300 ~ G550 |
Here is our recommendation for different markets:
Asia:
Thickness: 0.18 / 0.19 / 0.21 / 0.24 / 0.26mm width 914/1000/1250mm,high
gloss red, high gloss brown, clear varnish
Africa:
Thickness: 0.25 / 0.26 / 0.27 / 0.28 / 0.3 / 0.38 / 0.4 / 0.45mm with 762/914/1000
/1250 mm width,red,green,blue,white
Middle East:
Thickness: 0.25 / 0.26 / 0.28 / 0.30 / 0.32 / 0.35 / 0.38 / 0.42 / 0.45 / 0.50 / 0.60
/ 0.70 mm with 1220/1219mm with RAL9002, RAL9003, RAL1001,White
South America:
Thickness 0.12 / 0.14 / 0.16 / 0.35 / 0.49mm with 914/1000 / 1220mm, red,green
and blue color.

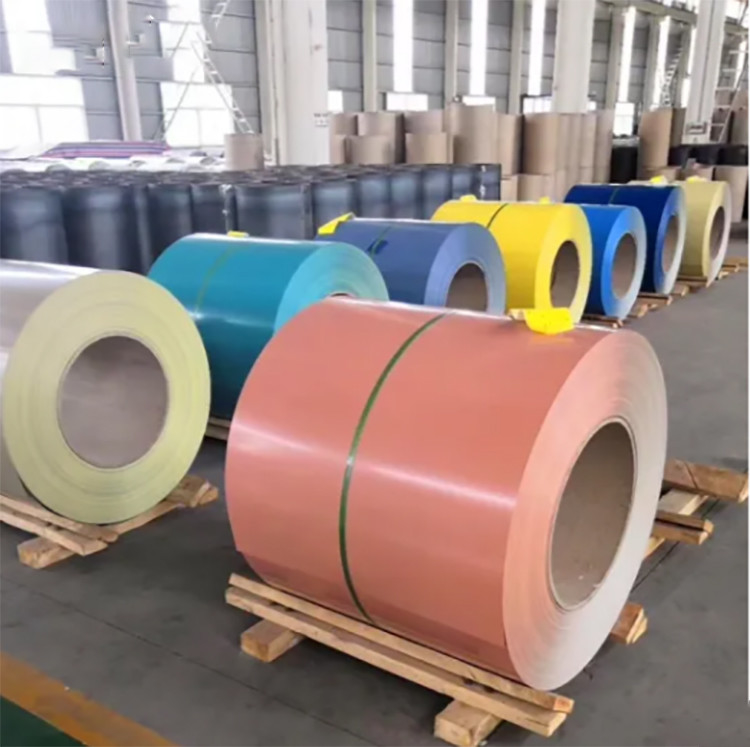

Production line:
Please contact with us for enquiry!
